Passenger cars, Vans: Installation to OBD2 - Port
Realtime tracking, Vehicle logbook, driver behaviour
Dimensions: 71 x 46 x 24 mm, 48 g

Passenger cars, Vans, Working Machines: Wired connection, cigar lighter, OBD2 -Port
Realtime tracking, Vehicle logbook, driver identification, remote immobilization
Dimensions: 99 x 76 x 19 mm, 83 g

Heavier applications: Forklifts, Trailers, Working Machines
Realtime tracking, driver identification, remote immobilization
Dimensions: 126 x 80 x 27 mm, 170 g

Heavy and harsh applications: Forestry Machines, Trailers, Mining Vehicles
Complex measurement- and control -systems, optional Iridium satellite connection
Dimensions: 180 x 119 x 39 mm, 330 g
Passenger cars, Vans, Excavators, Forestry machines, Forklifts, Trailers, Mining Vehicles.... We can provide a suitable tracking unit and sensors for any type off vehicle. If your vehicle type was not listed, we can definitely equipt it too. All our wired devices have a backup -battery which will give them power to live for weeks, and also alarm from the external voltage loss if needed. Each device includes GPS -module and 3D -accelerometer to monitor driver behaviour, sudden brakings or accidents.

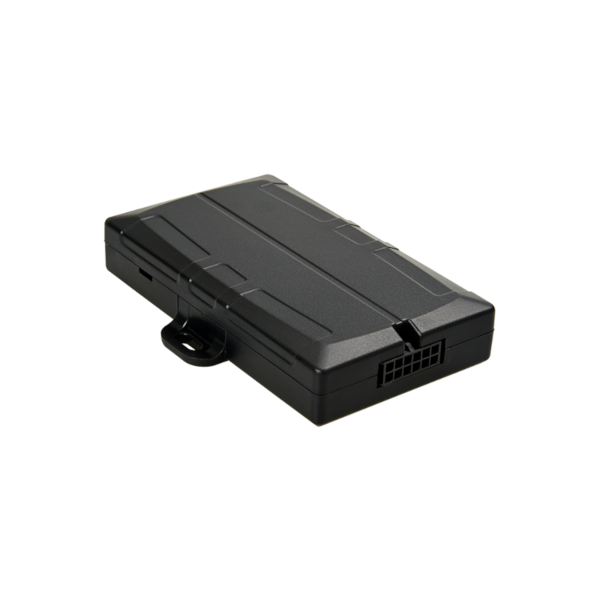

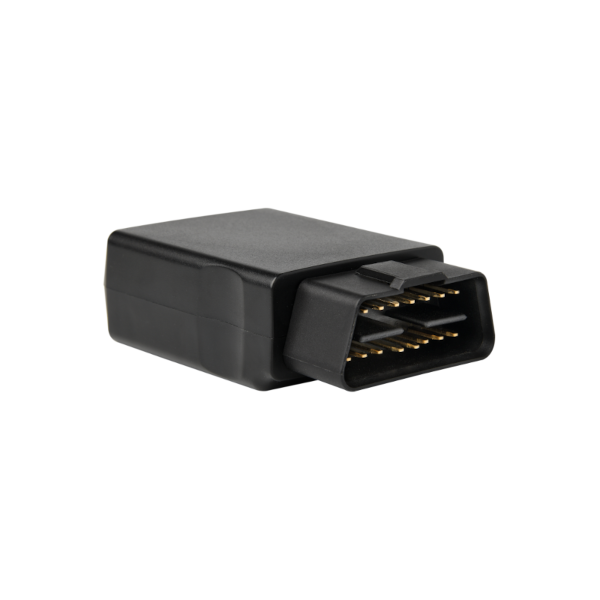

Passenger car or Van vehicle logbook can be recorded with Bolt-4G. Bolt-4G is simple and simply installed tracker taking power from vehicle OBD2-Port. Dart-4G is a bit advanced compared to Bolt-4G, still dedicated to cars or vans. It can be supplied with OBD2- or cigar lighter -harness for easy installation. Dart-4G is capable to store vehigle logbook, and it has some I/O for driver identicfication, runhour calculation and remote immobilization.

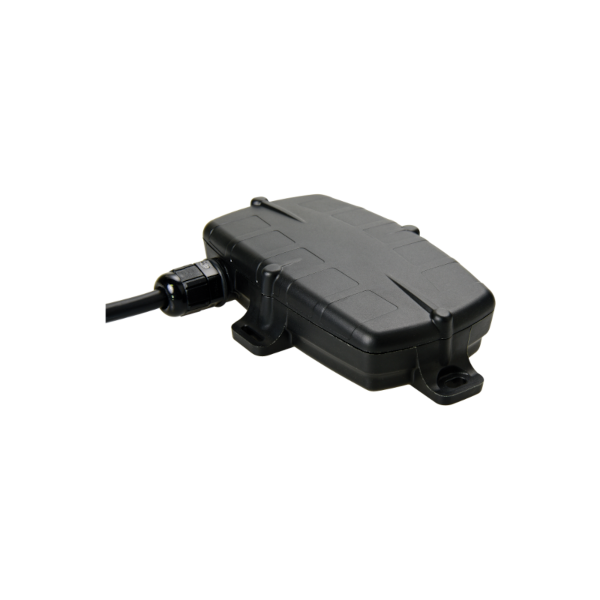

Heavier vehicles and applications are equipped with G70-4G. Device is for harsh environments like for trailer tracking, forklift trucks or forestry machines. In these applications, it is a choice for runhour calculations, realtime -tracking, driver identification and remote immobilization. These can be achieved with 3 digital input, 1 digital output and 1 analogue input -channels. IP68 -housing survives from dust, dirt and shocks.

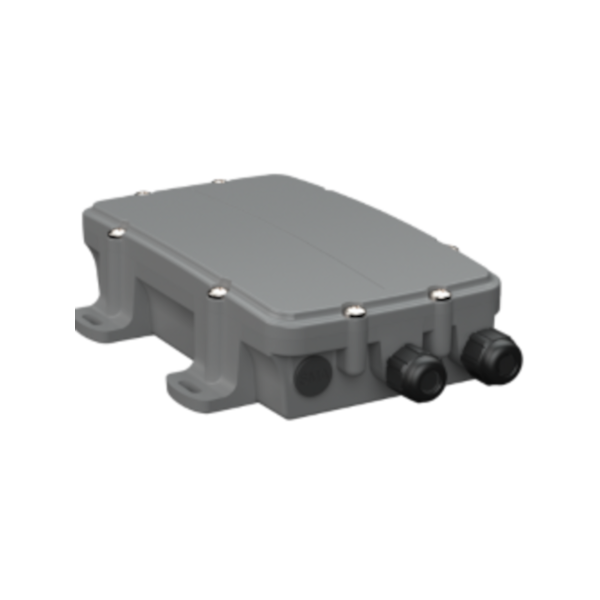

When application goes complex in a harsh environment, G150-4G will be utilised. As G70-4G, G150-4G has nice amount of inputs and output, enabling pretty much all measurements and controls that would be needed in a heavy vehicle -application. G70-4G and G150-4G are both also scanning bluetooth sensors from environment. Example of utilising G150-4G would be fuel -tank monitoring, tyre pressure monitoring and load temperature monitoring while recording realtime location and logbooks. Both units are very powerfull IOT-tracking units.

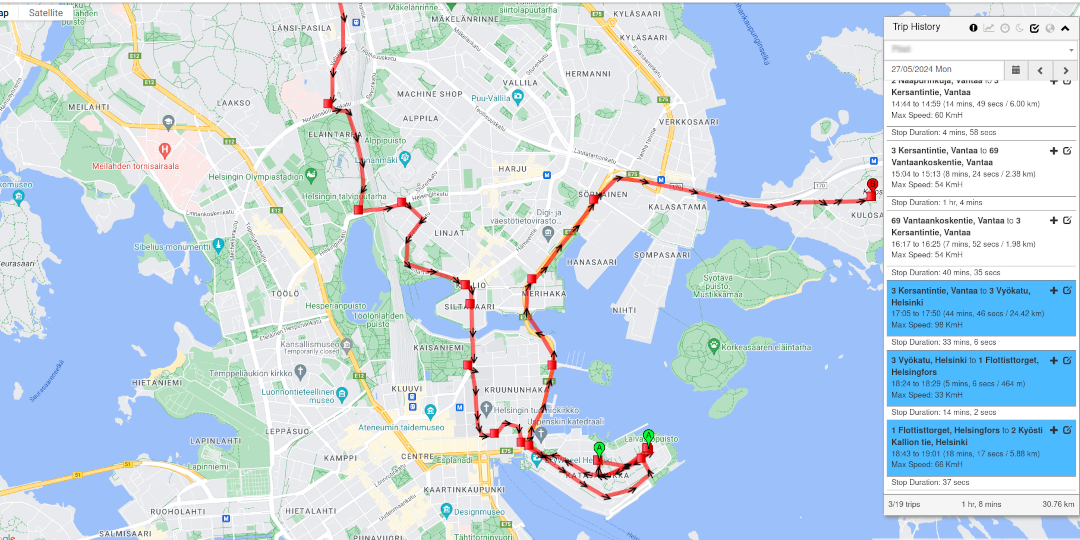

All wired devices are tracking realtime, location and vehicle state is presented on map. Location history is stored for later usage. Devices are updating their location with a defined period (with e.g. 5s interval), when heading changes pre -defined amount (road crossing), when speed changes pre -defined amount, when vehicle has travelled pre -defined distance (e.g. 50m) and when speed drops to zero etc. Realtime tracking is a combination of these. Tracking can always be configured accurate enough!

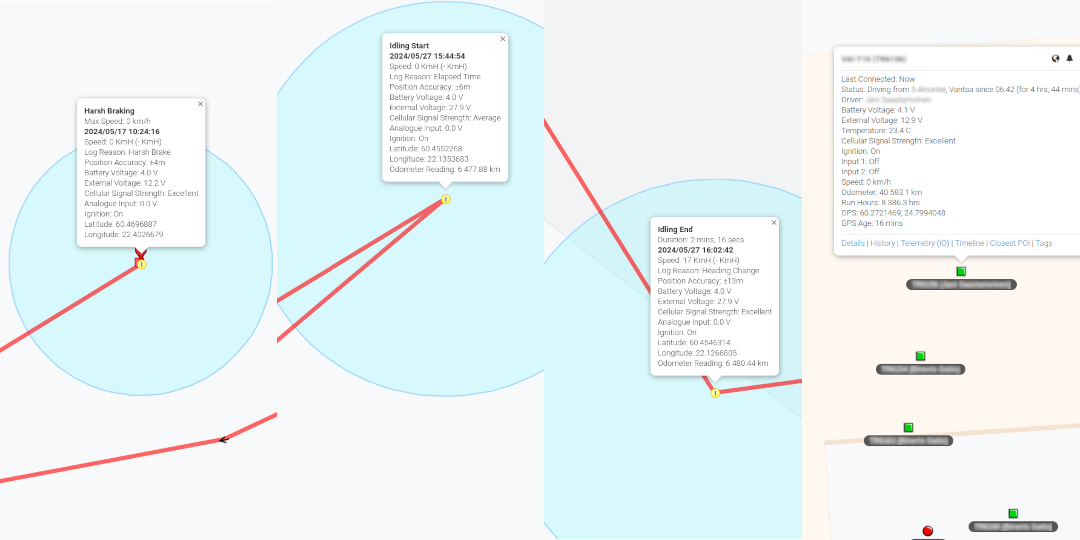

Telematics Guru, points out clearly user defined features like e.g. Driver, time elapsed, distance driven, total runhours, total km's, or for example how long vehicle has been idling. Harsh brakings, harsh accelerations and overspeeding are also shown on map. These features are user defined and users can easily create their own events. Event can also be alerted to defined contacts. E.g load temperature, unauthorized usage, period of idle etc.

As with battery powered units, geofences are a great tool for vehicle tracking. Since geofences are loaded to units own menory, device can change its behaviour based on fence: for example the GPS location accuracy can be temporarily enhanced into inside of a parking slot. Machine rentals can use geofences to help with their inventories and invoicing customers. Also vehicle could be immobilized if inside/outside geofence. And of course unauthorized usage could be used to trigger an alarm. List is long, consulting PQ-Team is recommended.

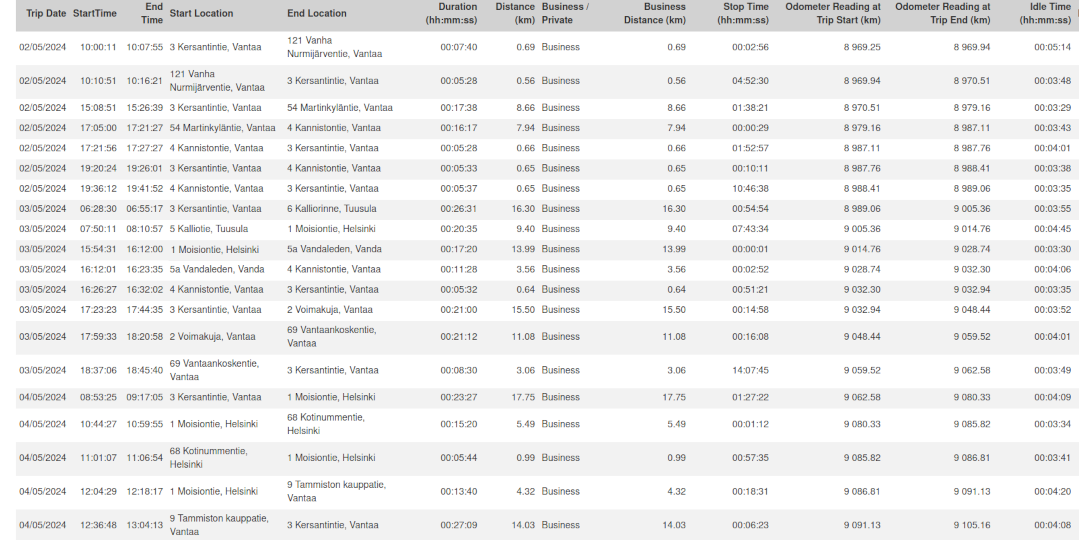

Telematics Guru has comprehensive reporting tools as a default, but also possibility to create own tailored reports. Reports can be generated for vehicle, for driver, for geofence, for project or for department. Generating reports can be automated daily, weekly, monthly, yearly, it is fully customisable. Reports can be viewed in multiple formats (excel, pdf, csv).
